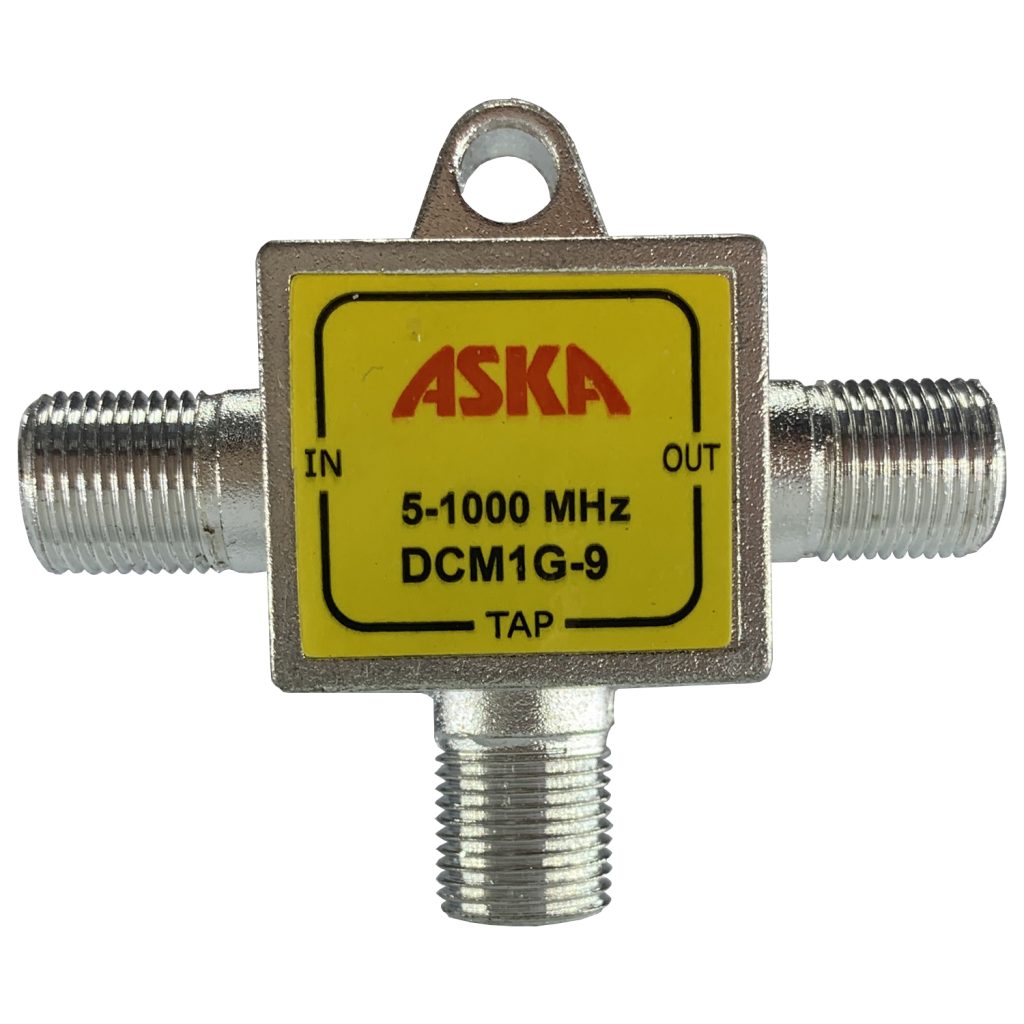

DCM1G-(*) 1GHz Directional Coupler

Model No.: DCM1G

Directional Couplers/1GHz/Solder Back

Tap Value: 6/9/12/16/20/24

Insertion Loss: 2.5dB  for 6dB Tap

1.5dB for 9/12/16/20dB Tap

0.5dB for 24dB Tap

Isolation (Tap-Out):  23dB Min

Return Loss: 20dB (Min)
