Fiber Optical Splice Closure, In-Line, 8 Ports, 36 Fibers

Fiber Optical Splice Closure 08
Model No.: FOSC-IL-08C

*Fixed with buckles, sealed with silicon, easy to open
*Small dimension, cable in & out from left and right, input from the base, easy installation and maintenance
*Easy to install and reopen, no need the special training
*Equipped with sizes of cable rings for kinds of cables in and out

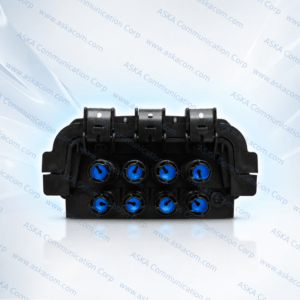

*8 pcs fast connectors on the base, available 8 pcs cables output
*The 8 pcs of fusion fast connectors at the bottom can meet the requirement of maximum 8 pcs of optic fiber fast and straight fusion output at the same time
*1pc 1*8 splitter available.
*Applicable cable diameter: 9-11mm
*Applicable environment: Aerial, pipe-lined
*L * W * H: 276*248*117.2mm
*Waterproof rate: IP65

Categoría: Marca:

Descripción

Description

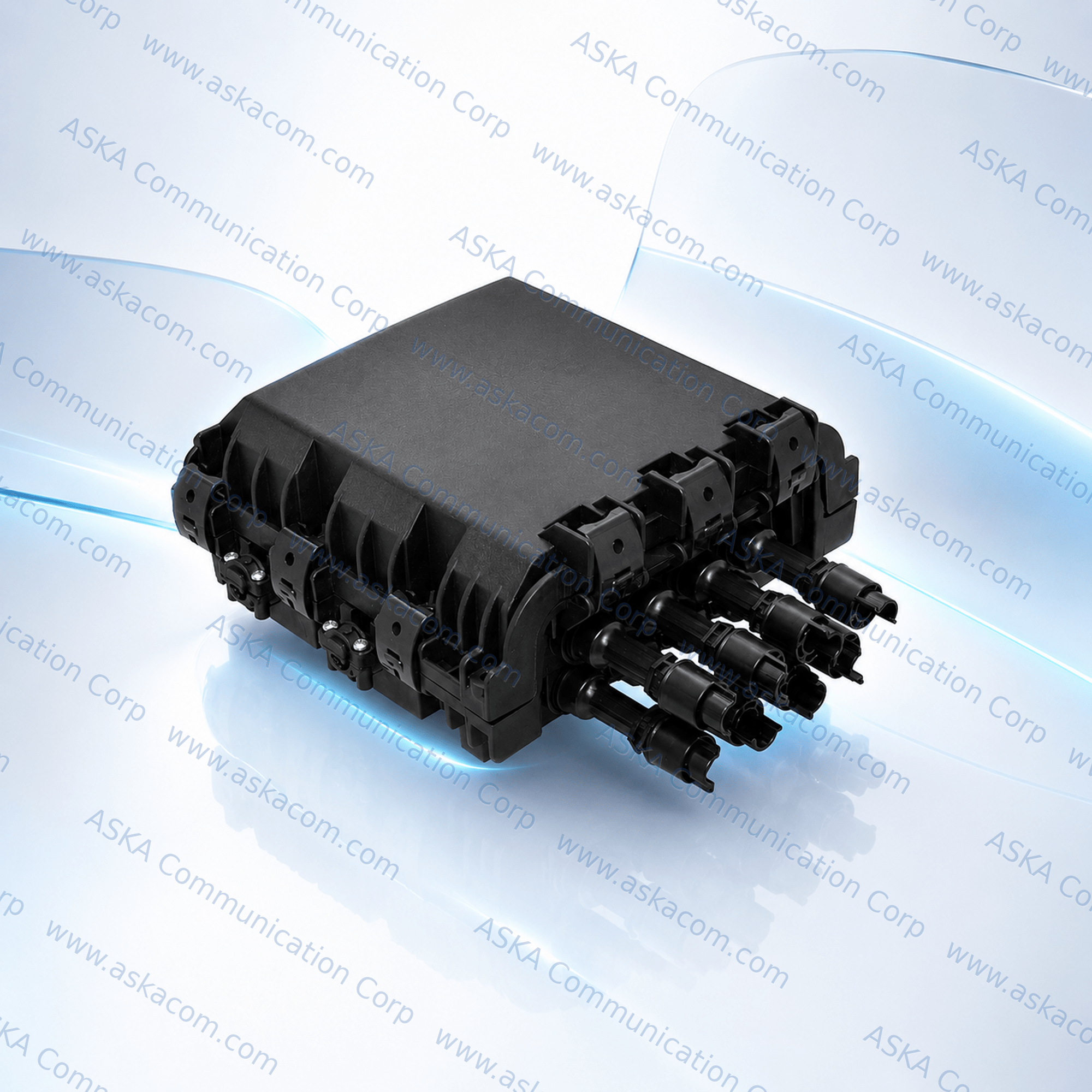

FOSC-H8 Series is an inline fiber optic splice closure designed for outdoor FTTx access network applications where distribution cables need to be connected, branched, or split to multiple drop cables. The closure features a fully mechanical sealing and re-openable design, making it suitable for pole-mounted, wall-mounted, and aerial installations.

The closure supports 2 inlet and 2 outlet round cable ports for Φ8–Φ12 mm cables, plus 8 SC adapter/drop cable ports for 2 × 3 mm figure drop cables. It can be configured with splice trays, SC-sized adapters, and optical splitters, allowing fast connector access without opening the main closure body. With PP+GF housing, vulcanized butyl rubber strip sealing, optional valve and earthing rod, and up to 36F splice capacity, FOSC-H8 is a practical choice for FTTH distribution and outdoor access network construction.

Specifications & Configuration

Series Name FOSC-H8 Series
Product Type Inline Fiber Optic Splice Closure
Model Name FOSC-H8
Size 318.5 × 238 × 118 mm
Housing Material PP + GF
Max Splicing Capacity 36F

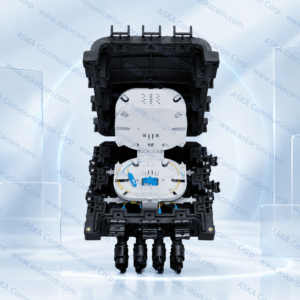

Max Tray Number 3 Trays
Tray Capacity 12F Per Tray
Main Cable Ports 2 Inlet + 2 Outlet Round Ports

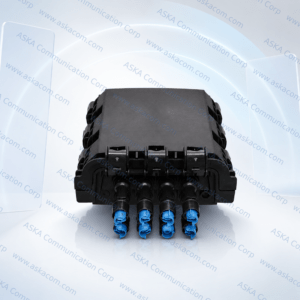

Drop Cable Ports 8 SC Adapter / Drop Cable Ports
Main Cable Diameter Φ8–Φ12 mm
Drop Cable Size 2 × 3 mm Figure Drop Cable
Splitter / Adapter Options 2 pcs 1:4 / 2:4, or 1 pc 1:8 / 2:8 With SC-Sized Adapter
Sealing Method Vulcanized Butyl Rubber Strip
Applications Pole / Wall / Aerial Mounting
Working Temperature -40°C to +65°C
Atmospheric Pressure 62–106 kPa
Axial Tension >1000N / 1 min
Stretching Resistance >2000N / 10 cm², 1 min
Flatten Pressure >2000N / 100 mm, 1 min
Insulation Resistance >2 × 104 MΩ
Voltage Strength 15 kV DC / 1 min, no arc-over or breakdown
Optional Accessories Valve / Earthing Rod

Features & Applications

Product Features:

  • Inline closure design for FTTx access networks
  • Fully mechanical sealing structure
  • Re-openable design for easier maintenance
  • Vulcanized butyl rubber strip sealing

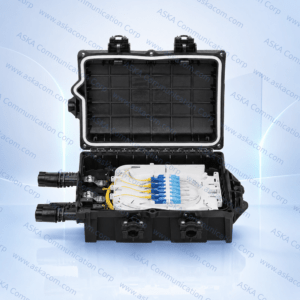

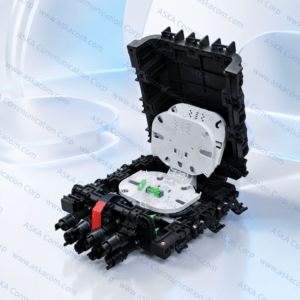

  • Supports splicing, branching, adapter connection, and splitter installation
  • 8 SC adapter/drop cable ports for 2 × 3 mm figure drop cables
  • Fast connector access without opening the main closure body
  • Simple internal structure for easier installation
  • Optional valve and earthing rod available

Recommended Applications:

  • FTTH access networks
  • FTTx distribution networks
  • Outdoor fiber cable branching
  • Drop cable connection points
  • Pole-mounted fiber distribution
  • Wall-mounted fiber distribution
  • Aerial fiber network installation
