Stranded Loose Tube Single-steel-wire Armored Cable

Description

ASKA-LTSSW-* Stranded Loose Tube Single-Steel-Wire Armored Cable is designed for direct buried, climbing, and underwater fiber optic installations where high tensile strength, moisture protection, and strong mechanical protection are required. The cable uses colored fibers in PBT loose tubes, a steel wire central strength member, cable filling compound, water-blocking tape, APL/PSP moisture protection, PE inner and outer sheath layers, and steel wire armor. It supports 2 to 36 fiber cores, making it suitable for demanding outdoor fiber network routes that require stronger protection than standard duct or light-armored cables.

Key Specifications

Model No.	ASKA-LTSSW-*
Cable Type	Stranded Loose Tube Single-Steel-Wire Armored Cable
Fiber Count	2–36 Cores
Fiber Type Options	G.652 / G.655 / 50/125 / 62.5/125
Sheath Options	PE or Anti-Tracking AT Material
Central Strength Member	Steel Wire
Armor Layer	Steel Wire Armor
Moisture Protection	APL / PSP + Water-Blocking Tape
Sheath Structure	PE Inner Sheath + PE Outer Sheath
Max Working Tension	4000N / 10000N
Crush Resistance	3000N/100mm / 5000N/100mm
Bend Radius	Static 12.5D / Dynamic 25D
Operating Temperature	-40°C to +70°C

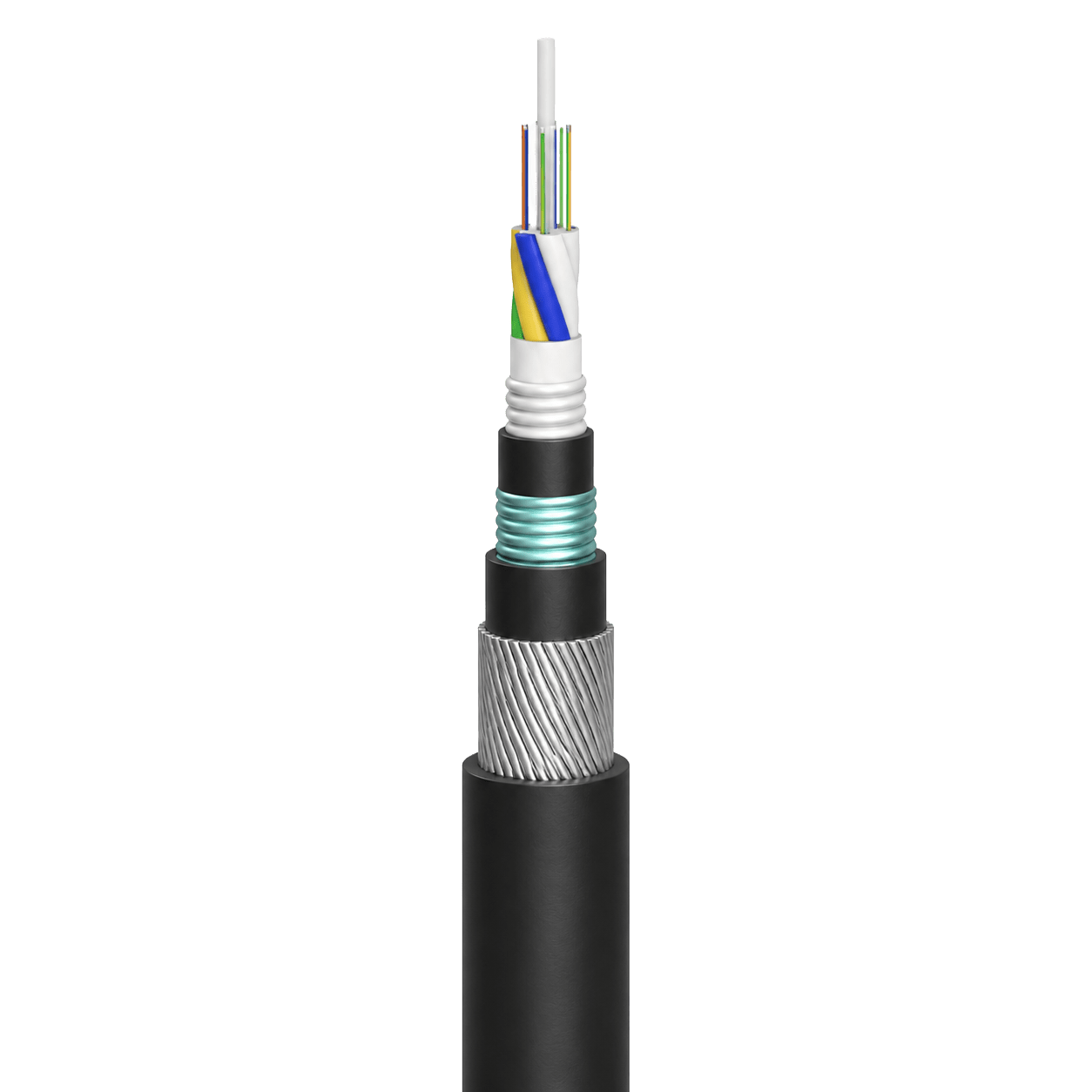

Cable Structure

Cable Structure Includes:

PE or anti-tracking outer sheath
PE inner sheath
Colored fibers in PBT loose tubes
Tube filling compound
Cable filling compound
Steel wire central strength member
Water-blocking tape
APL aluminum plastic laminate
PSP double-coated plastic-coated steel tape
Steel wire armor for high tensile strength

Stranded Loose Tube Single-steel-wire Armored Cable
