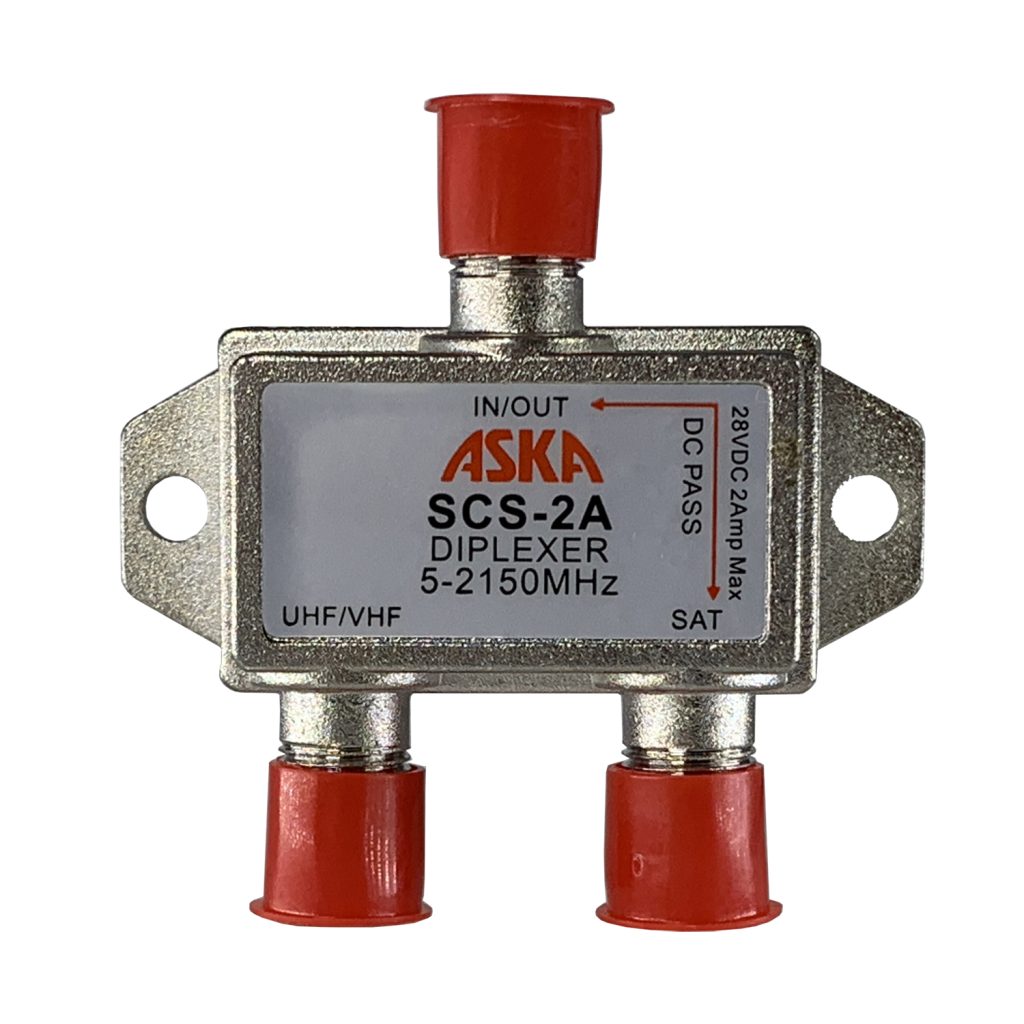

SCS-2A Satellite Diplexers Dish Approved 2Amps

Model No.: SCS-2A

Dish Network approved model for Dish Pro receiver installation

Feature:

*Low Insertion Loss on both ANT and SAT ports

*Higher Return Loss 12dB Min on both ANT & SAT ports

*Solder back cover for excellent RFI shielding

*Complies with CEA-897 port color coding

Specification:

Band width: (ANT) 5-806MHz (SAT) 950-2150MHz

Insertion Loss: (ANT) 2dB Max (SAT) 1.5dB Max

Stop band Attenuation 35dB min

DC current capability: (SAT port only) 2Amp 28VDC

Return Loss: 12dB Min on both SAT and ANT ports
