Uni-tube Non-metallic Air-blowing Micro Cable

Description

ASKA-UNMC-* Uni-tube Non-metallic Air-blowing Micro Cable is designed for microduct air-blown fiber installation where compact size, flexibility, and non-metallic tensile reinforcement are required. The cable places 250 µm optical fibers inside a high-modulus PBT loose tube filled with water-resistant tube filling compound, then reinforces the cable core with aramid yarn and finishes it with a black or colored HDPE outer sheath. Its smooth sheath helps reduce friction for air-blowing performance, while the simple uni-tube structure makes the cable easy to strip and handle.

Key Specifications

Model No.	ASKA-UNMC-*
Cable Type	Uni-tube Non-metallic Air-blowing Micro Cable
Fiber Type Options	G.652D / G.657A1 / G.657A2
Fiber Size	250 µm
Cable Structure	Uni-tube / PBT Loose Tube
Tube Filling	Water-Resistant Tube Filling Compound
Strength Member	Aramid Yarn
Outer Sheath	Black or Colored HDPE / PE Sheath
Max Working Tension	60N / 30N, per spec sheet
Crush Resistance	300N/100mm / 450N/100mm
Bend Radius	Static 10D / Dynamic 20D

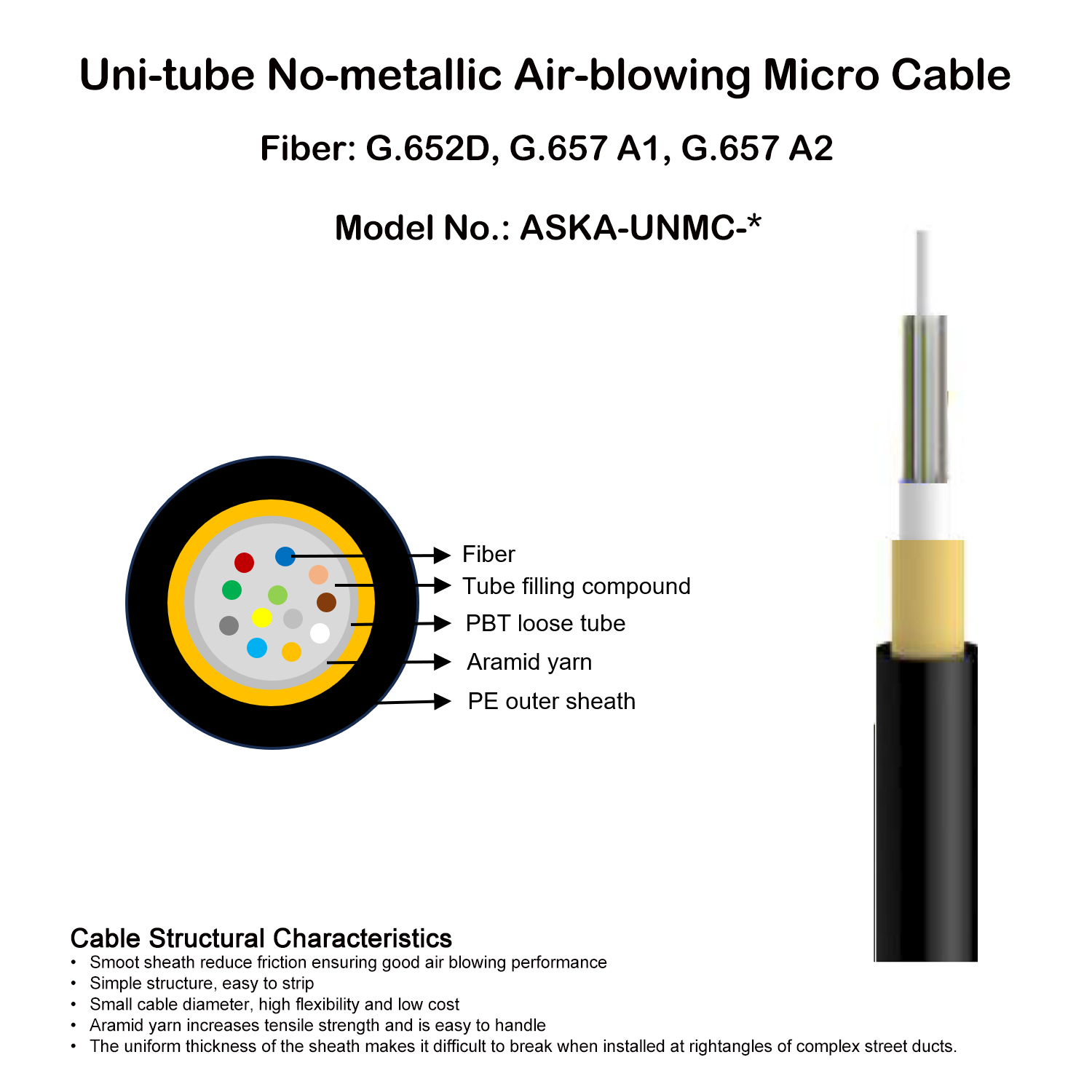

Cable Structure

Cable Structure Includes:

PE / HDPE outer sheath
PBT loose tube
250 µm optical fibers
Tube filling compound
Aramid yarn strength member
Smooth sheath for reduced friction during air-blowing installation
Small-diameter, flexible non-metallic micro cable structure

Uni-tube Non-metallic Air-blowing Micro Cable
