Passive

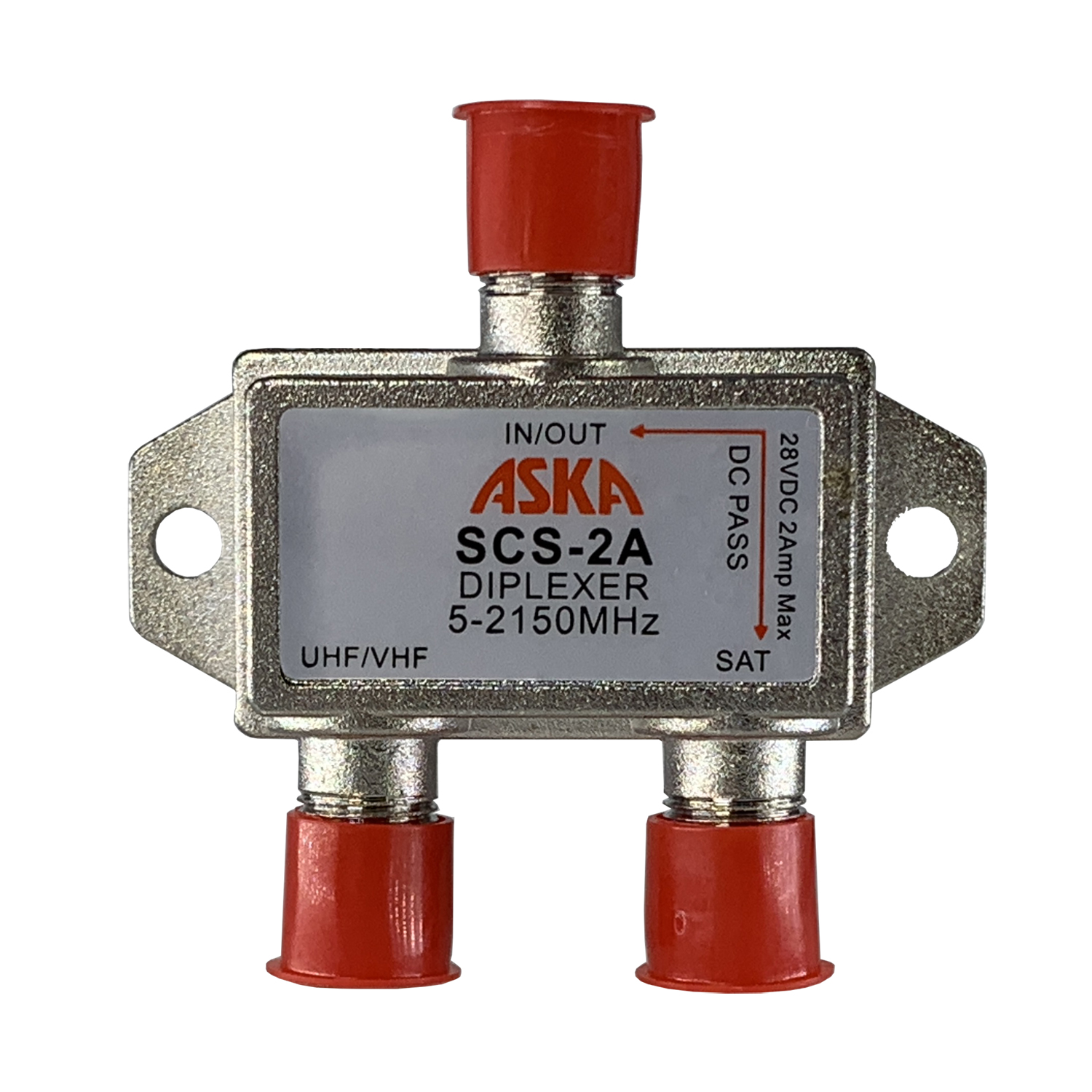

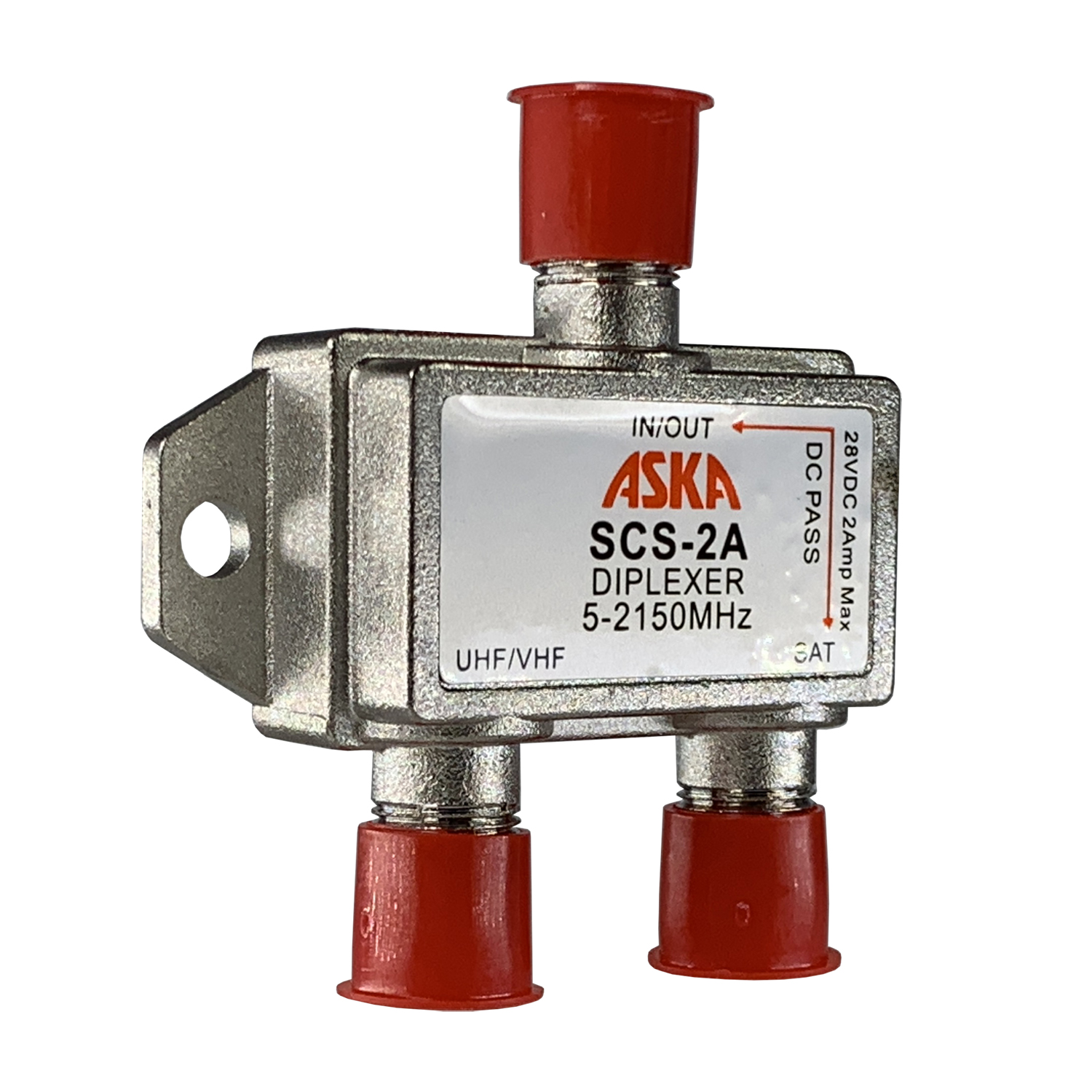

SCS-2A Satellite Diplexers Dish Approved 2Amps

Satellite diplexer.

SCS-2AModel No.
PassiveProduct category
Satellite diplexerProduct type

Description

SCS-2A is a Satellite diplexer. Dish Network approved model for Dish Pro receiver installation. Low Insertion Loss on both ANT and SAT ports. Higher Return Loss 12dB Min on both ANT & SAT ports. Solder back cover for excellent RFI shielding. Complies with CEA-897 port color coding. Stop band Attenuation 35dB min.

Key specifications

Model No. SCS-2A
Band width (ANT) 5-806MHz (SAT) 950-2150MHz
Insertion Loss (ANT) 2dB Max (SAT) 1.5dB Max
DC current capability (SAT port only) 2Amp 28VDC
Return Loss 12dB Min on both SAT and ANT ports
