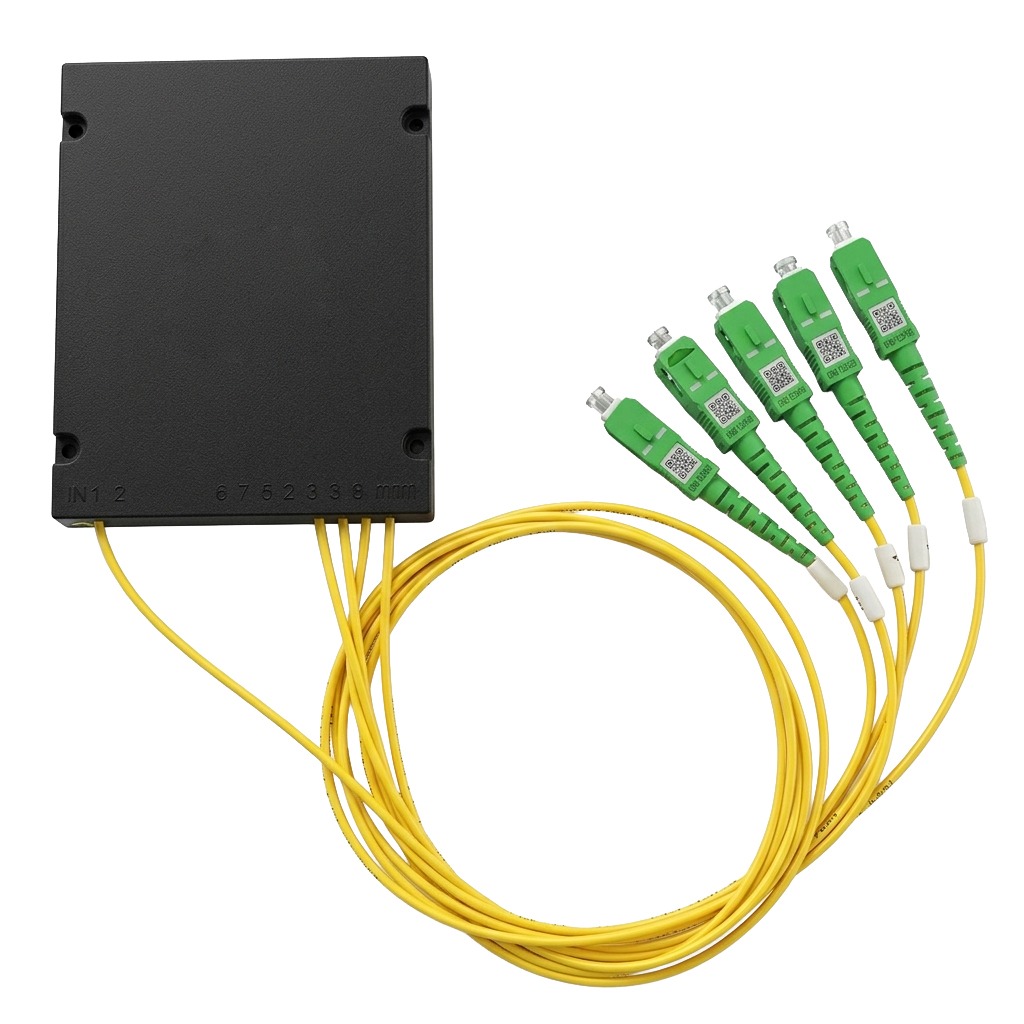

Optical Coupler – ABS
Inquiry-first product detail for category-led browsing and B2B decision support.
Specification:
| Item | Value | |||
| Split Ratio Signal | Max Insertion Loss(dB) | Max uniformity | ||
| Percentage % | Tap | Thru | ||
| 1×2 optical Coupler | 50/50 | 3.7 | 3.7 | 0.7 |
| 45/55 | 4.2 | 3.3 | ||
| 40/60 | 4.7 | 2.9 | ||
| 35/65 | 5.3 | 2.6 | ||
| 30/70 | 5.9 | 2.2 | ||
| 25/75 | 6.7 | 1.9 | ||
| 20/80 | 7.7 | 1.7 | ||
| 15/85 | 8.9 | 1.4 | ||
| 10/90 | 10.7 | 1.2 | ||
| 05/95 | 13.7 | 0.9 | ||
| 1×3 optical coupler | 33/33/33 | 6.3/6.3/6.3 | 1.5 | |
| 30/35/35 | 6.7/6.1/6.1 | |||
| 30/30/40 | 6.7/6.7/5.5 | |||
| 25/25/50 | 7.5/7.5/4.5 | |||
| 20/40/40 | 8.5/5.5/5.5 | |||
| 20/20/60 | 8.5/8.5/3.7 | |||
| 1×4 optical coupler | 25/25/25/25 | 7.5/7.5/7.5/7.5 | ||
| 10/10/20/60 | 11.5/11.5/8.5/3.7 | |||
| 10/20/30/40 | 11.5/8.5/6.7/5.5 | |||
| 20/20/30/30 | 8.5/8.5/6.7/6.7 | |||
| 1×8 optical coupler | Even | 11 | 2 | |
| 1×12 optical coupler | Even | 12.8 | ||
| 1×16 optical coupler | Even | 14 | ||
| 1×32 optical coupler | Even | 17.1 | ||
Technical Date
| Parameter | Unit | Value |
| Return Loss | dB | ≥55 |
| Uniformity of 1.L | dB | ≤1.5 |
| PDL | dB | ≤0.2 |
| Directivity | dB | ≥55 |
| Operating Temperature/Humidity | ℃ | from -40℃ to +85℃ /90% |
| Storage Temperature/Humidity | ℃ | from -40℃ to +85℃ /90% |
| Maximum Input Power | mW | 500 |
