10-ZP6JC Bonding Jumper AT&T
10-ZP6JC Bonding Jumper AT&T.
10-ZP6JCModel No.
10ftCable Length
Installation PartsProduct category
Description

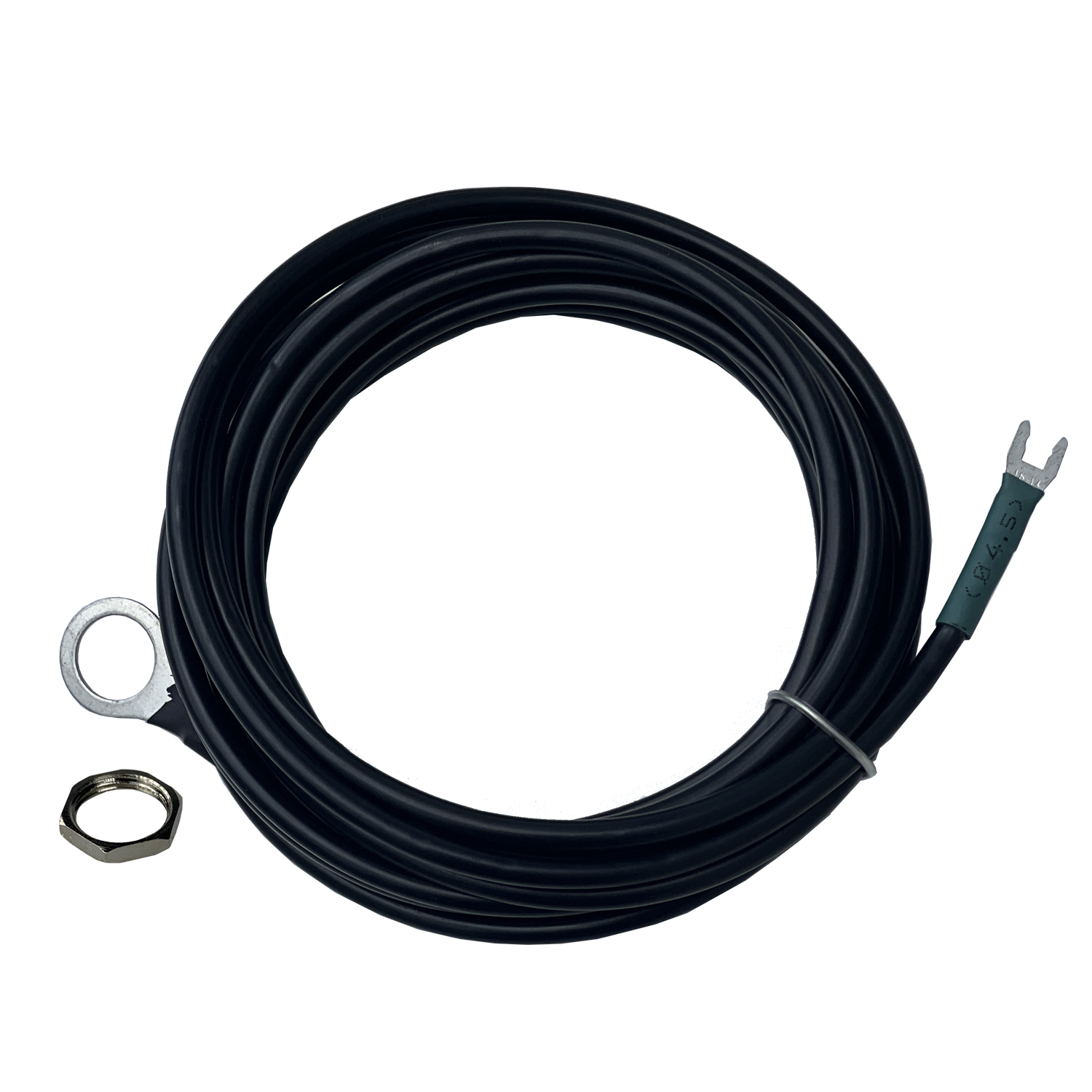

10-ZP6JC is a 10-ZP6JC Bonding Jumper AT&T. Bonding Jumper for F connector (Cable TV/ Satellite system). With one F port Nut. Products Installation. 1. If the wall plate screw is not metallic DO NOT CONTINUE. The wall plate screw should be loosened (DO NOT REMOVE) sufficiently to allow the ZJ6JC spade terminal to slid over the screw threads. 2.With the ZJ6JC spade terminal in place, tighten the wall plate screw ensuring not to obstruct the electrical outlets. 3.Before connector installation, the ZP6JC ring terminal should be placed over the set-top box F-port and secured with a lock nut.
Key specifications
| Model No. | 10-ZP6JC |
|---|---|
| Cable Length | 10ft |
| Specification | 14AWG UL VW-1 600V/105 |

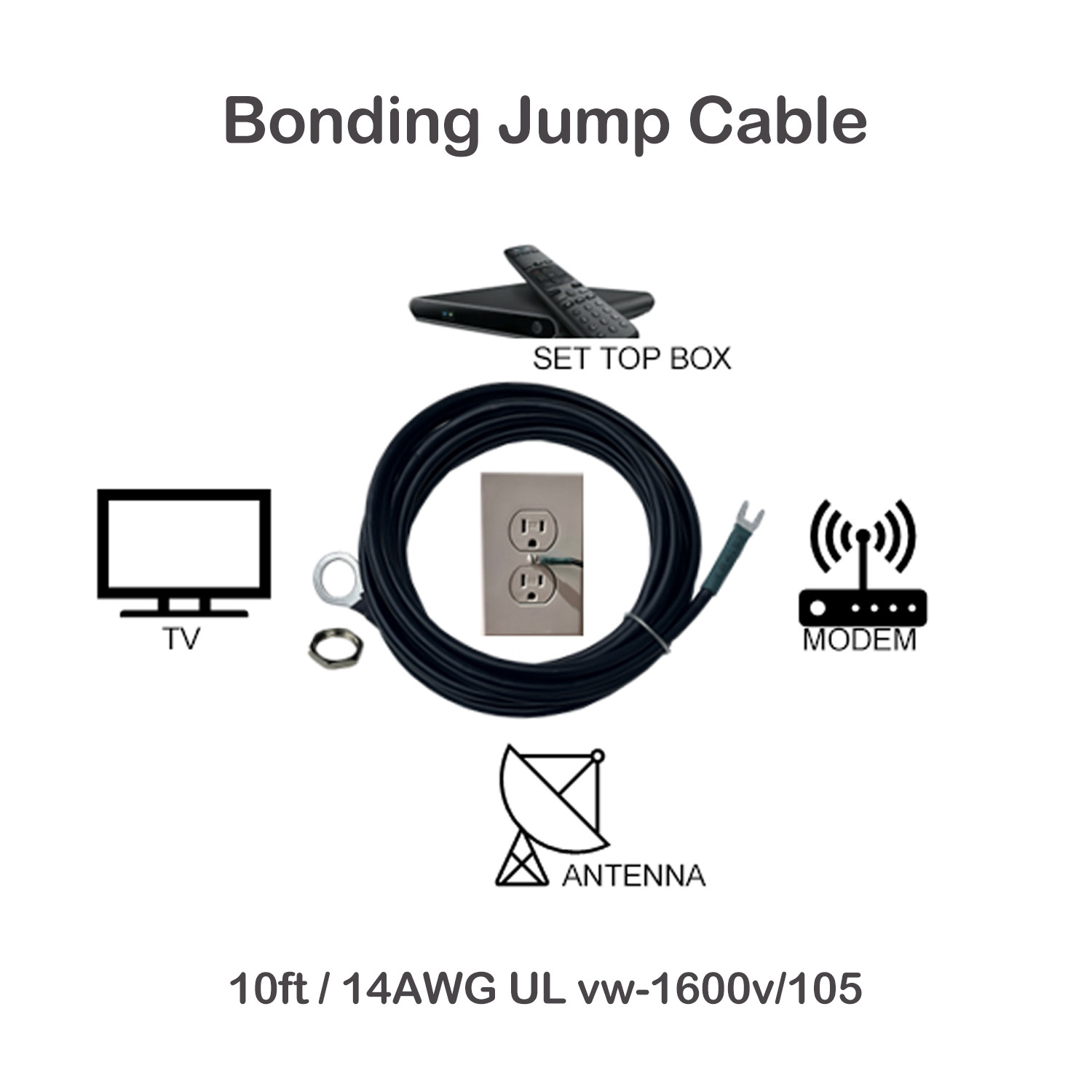

| Compatible Devices | Set-top boxes, cable modems, TV antenna |
| Important | Ensure electrical outlet is properly grounded first. |
