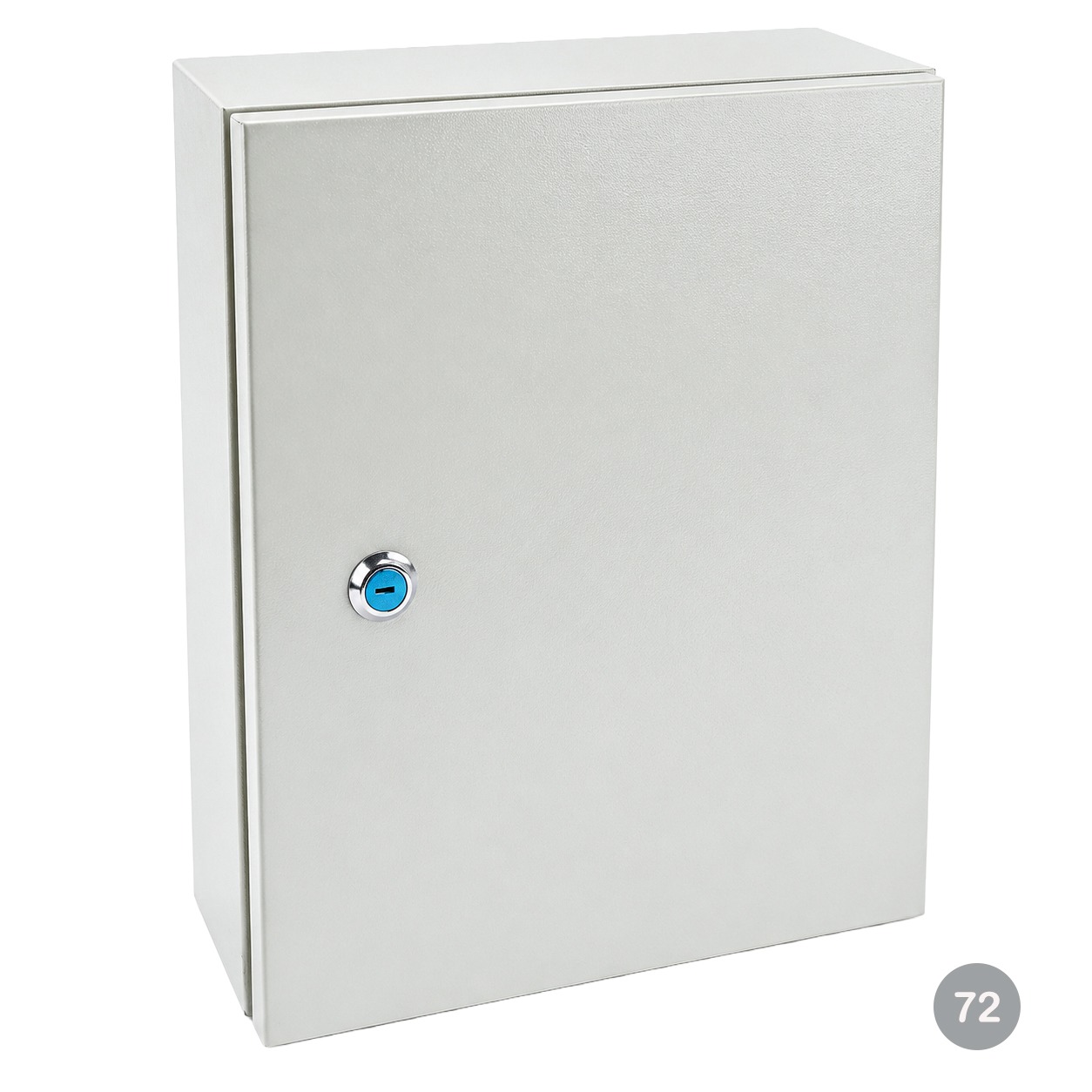

Wall Mount Closure-72

Model No.: FDB-72

Wall Mount Closure
Metal (wall mounted box) splitter distribution box, applicable in FTTH project. Suitable for corridor, basement, room and building’s outer walls application. With the function, of mechanical splice , fusion splice , light splitting, wiring distributions (all parts inside the enclosure box are supply separately).

Feature:
*High quality cold rolled steel body, electrostatic spraying with waterproof powder.
*High quality waterproof lock, wall mounted cabinet.
*Operating temperature: -30°C~+55°C, storage temperature: -40°C~+60°C.
*With access to 4/8/16/32/48/72/96cores fiber optic cables
*Suitable for multi-fiber optic cable access as well.
*Suitable for 4/8/24/48/72/96 pcs of SC, FC, ST adapters, easy to installation and maintenance.
*Support branch connection styles

Model No.	FDB-4	FDB-8	FDB-16	FDB-24	FDB-32	FDB-48	FDB-72	FDB-96
Max Capacity of Splice tray(single fiber)	4	8	16	24	32	48	72	96
Cable Diameter	10mm – 14mm
Cable Ports	1 holes	1 holes	2 holes	2 holes	4 holes	4 holes	6 holes	8 holes
Max Quantity of Splice Tray	1	1	2	2	3	4	6	8
Max Capacity on Main backbone Cable	12 Single Fiber
