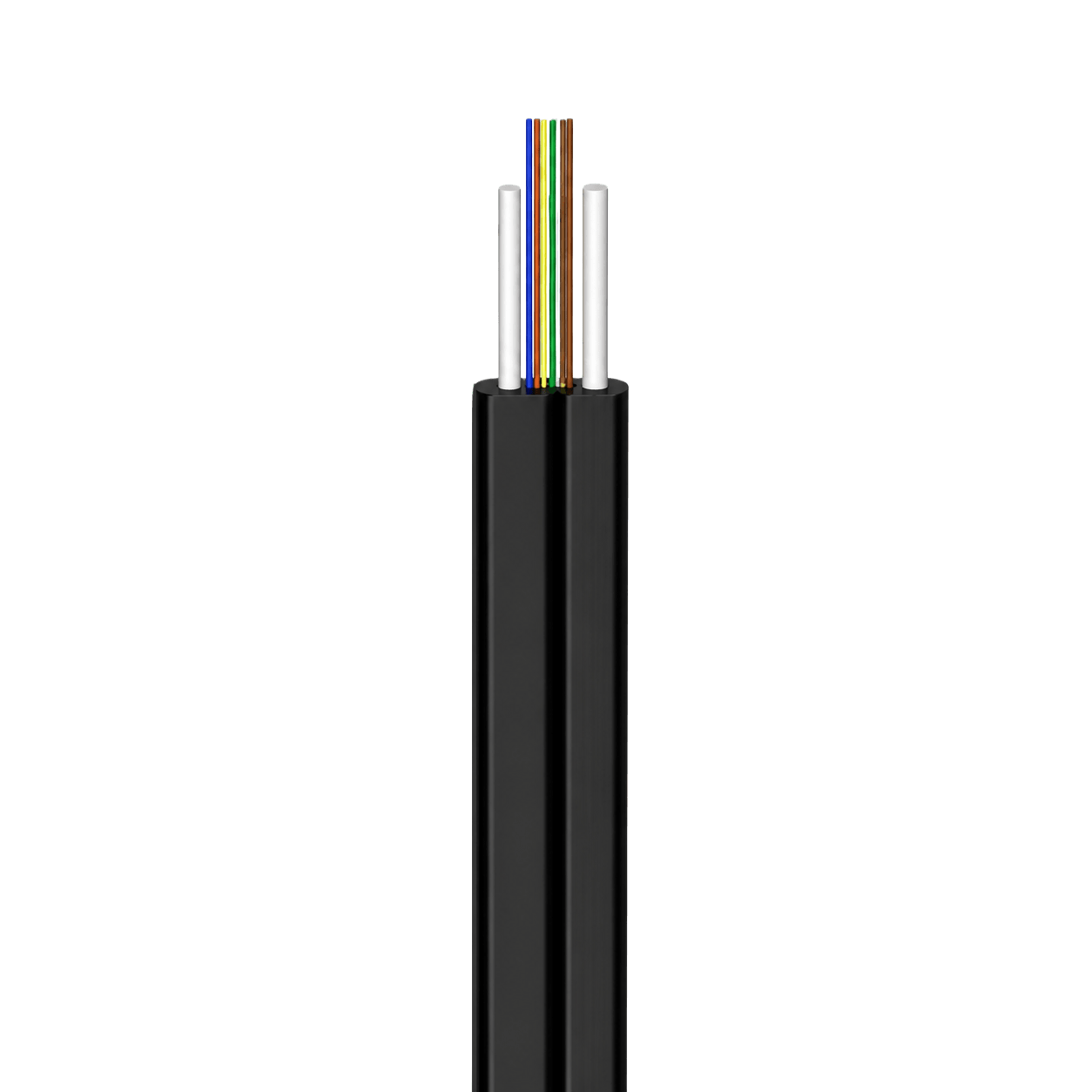

FTTH Drop Cable

FTTH Drop Cable

Model No.: ASKA-DC(*)

Fiber: 1/2/4/ cores, G.657 A1/ G.657.A2 / G.657. B3

Product Characteristics

Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property. Used indoor network installation
Two parallel FRP strength member ensure good performance of crush resistance to protect the fiber
Simple structure, light weight and high practicability
Novel flute design, easily strip and splice, simplify the installation and maintenance.
Low smoke, zero halogen and flame retardant sheath

Cable Structural Characteristics

Sheath: LSZH material/ Black
Fiber count: 1 ~ 4
Strength member: FRP (Fiber reinforce plastic rod) or steel wire

Temperature Range

Transport/Storage temp. -20°C~ +70 °C
Installation Temp.: -5°C~ +50 °C
Operation Temp.: -20°C~ +70 °
