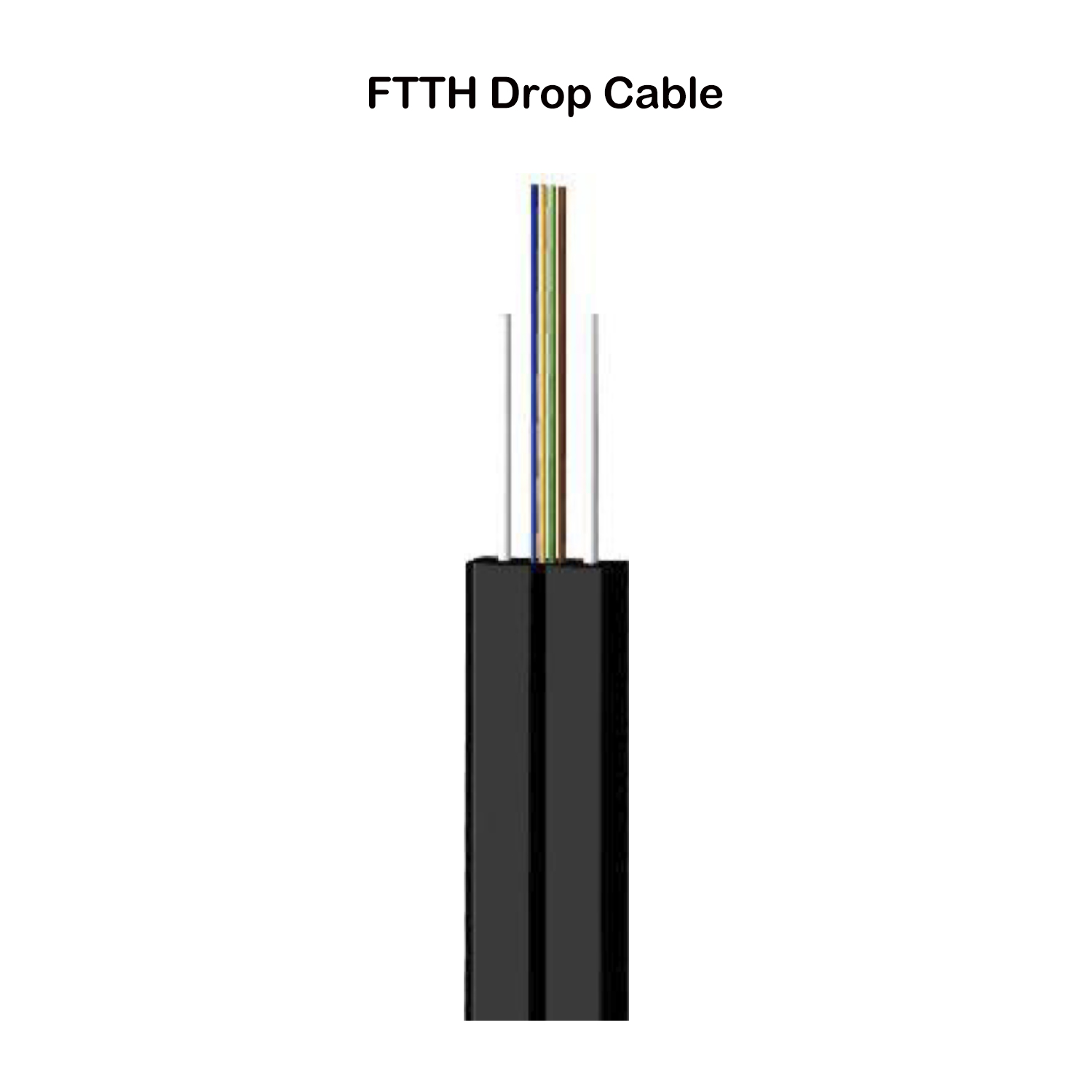

FTTH Drop Cable

Description

ASKA-FTTH-DC* FTTH Drop Cable is a compact bow-type fiber optic cable designed for indoor FTTH drop and access network installation. The cable uses low-bend-sensitivity G.657 fiber, two parallel FRP or steel wire strength members, and a black LSZH low-smoke zero-halogen flame-retardant jacket. It is available in 1, 2, and 4 fiber core configurations, with a lightweight structure designed for easy stripping, splicing, installation, and maintenance.

Key Specifications

Model No.	ASKA-FTTH-DC*
Cable Type	Bow-Type FTTH Drop Cable
Fiber Count	1 / 2 / 4 Cores
Fiber Type Options	G.657 A1 / G.657 A2 / G.657 B3
Jacket Material	Black LSZH
Strength Members	FRP or Steel Wire
Cable Diameter	2.0 × 3.0 mm / 2.0 × 4.0 mm
Cable Weight	8.1–9.8 kg/km
Permissible Tensile Force	80N Short-Term / 40N Long-Term
Crush Resistance	1000N/100mm Short-Term / 500N/100mm Long-Term
Temperature Range	-20°C to +70°C Operation

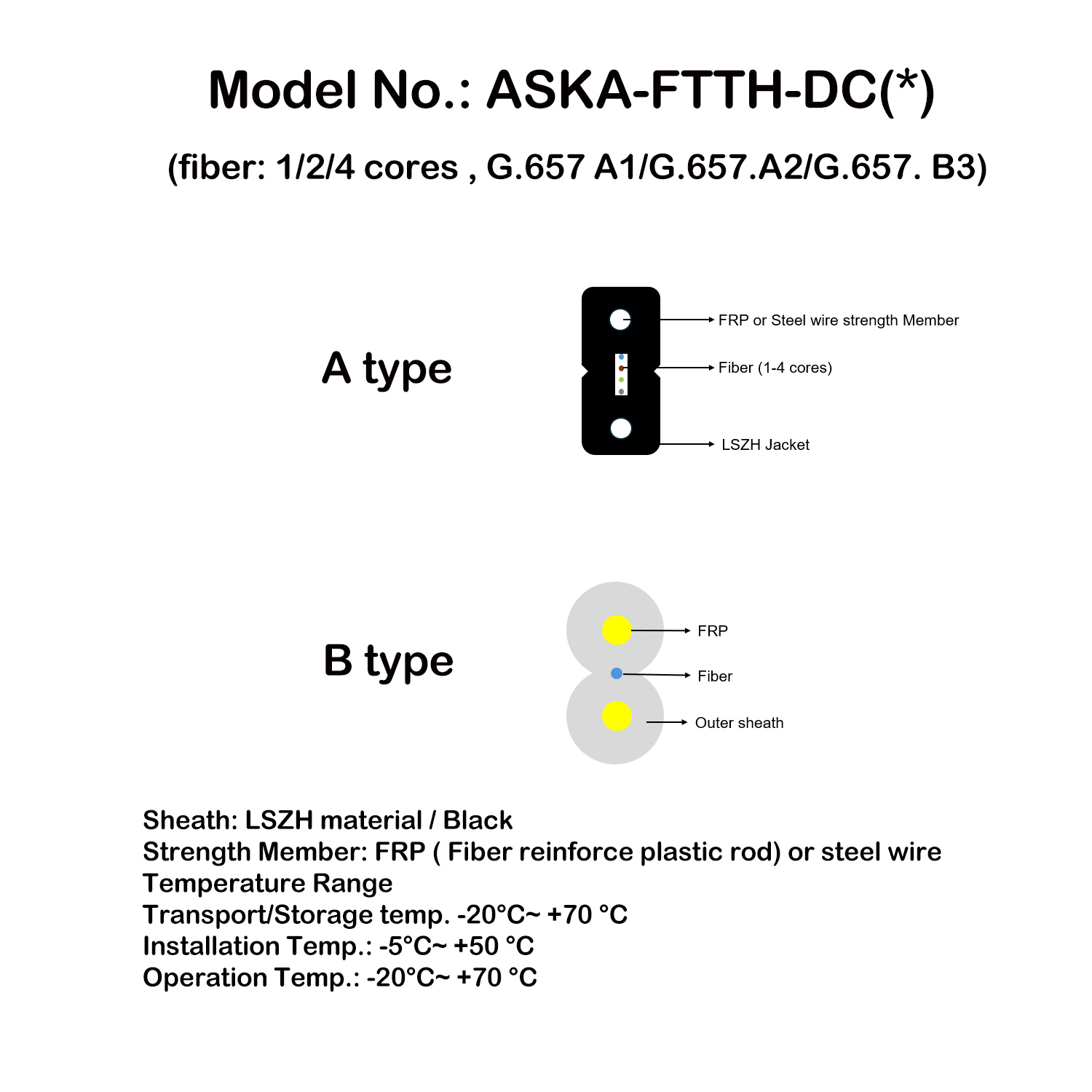

Cable Structure

Cable Structure Includes:

Black LSZH outer jacket
1–4 optical fibers
G.657 low-bend-sensitivity fiber
Two parallel FRP or steel wire strength members
Bow-type drop cable structure
Flute design for easier stripping and splicing
