Stranded Loose Tube Armored Cable

Inquiry-first product detail for category-led browsing and B2B decision support.

Stranded Loose Tube Armored Cable

Description

ASKA-LTAC-* Stranded Loose Tube Armored Cable is designed for outdoor duct and underground fiber optic network installation where added moisture protection and mechanical strength are required. The cable uses colored fibers in PBT loose tubes, an FRP or steel wire central strength member, cable filling compound, water-blocking tape, APL/PSP armored protection, and PE or anti-tracking sheath options. It supports fiber counts up to 216 cores, making it suitable for higher-capacity backbone, distribution, and duct fiber applications.

Key Specifications

Model No.	ASKA-LTAC-*
Cable Type	Stranded Loose Tube Armored Fiber Optic Cable
Fiber Count	2–216 Cores
Fiber Type Options	G.652 / G.655 / 50/125 / 62.5/125
Sheath Options	PE or Anti-Tracking AT Material
Central Strength Member	FRP or Steel Wire
Armoring Layer	APL / PSP
Water Blocking	Cable Filling Compound + Water-Blocking Tape
Max Working Tension	1000N / 3000N
Crush Resistance	1000N/100mm / 3000N/100mm
Bend Radius	Static 12.5D / Dynamic 25D
Operating Temperature	-40°C to +70°C

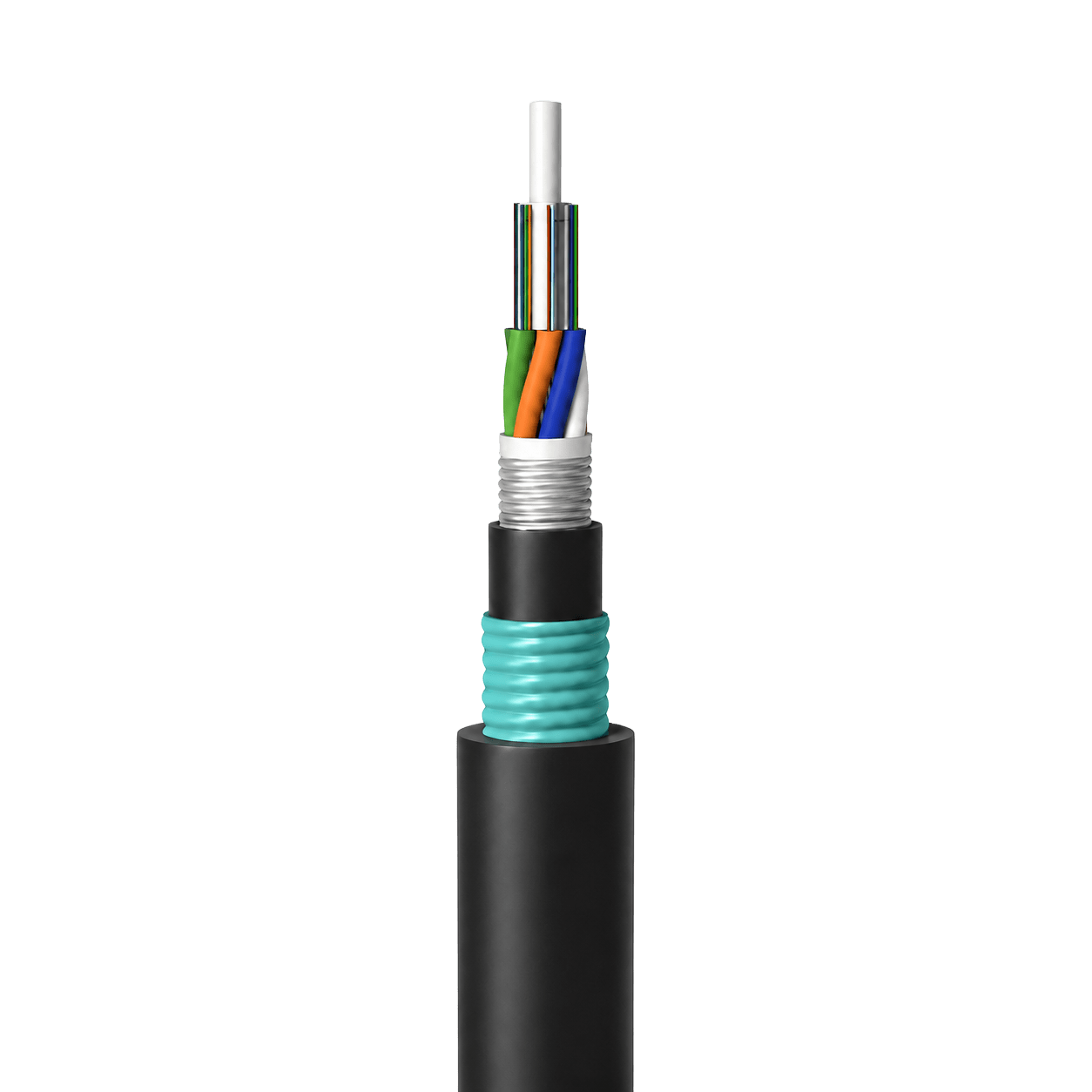

Cable Structure

Cable Structure Includes:

PE or anti-tracking outer sheath
PE inner sheath
Colored fibers in PBT loose tubes
Tube filling compound
Cable filling compound
FRP or steel wire central strength member
Water-blocking tape
APL aluminum plastic laminate
PSP double-coated plastic-coated steel tape
