Uni Tube Light-Armored Cable

Description

ASKA-ULAC-* Uni Tube Light-Armored Cable is designed for outdoor duct fiber optic network installation where a compact, lightweight cable with moisture protection and added tensile strength is required. The cable uses a high-strength PBT loose tube, tube filling compound, water-blocking tape, APL or PSP light-armored protection, and two parallel steel wire or FRP strength members. It supports 2 to 24 fiber cores and is suitable for smaller-capacity duct distribution and access network applications.

Key Specifications

Model No.	ASKA-ULAC-*
Cable Type	Uni Tube Light-Armored Fiber Optic Cable
Fiber Count	2–24 Cores
Fiber Type Options	G.652 / G.655 / 50/125 / 62.5/125
Cable Structure	Uni-Tube / Central Loose Tube
Outer Sheath	PE Outer Sheath
Strength Members	Two Parallel Steel Wires or FRP
Armor / Moisture Layer	APL or PSP
Water Blocking	Water-Blocking Tape + Tube Filling Compound
Max Working Tension	600N/1500N or 1000N/3000N, depending on configuration
Crush Resistance	1000N/100mm / 3000N/100mm
Bend Radius	Static 10D / Dynamic 20D
Operating Temperature	-40°C to +70°C

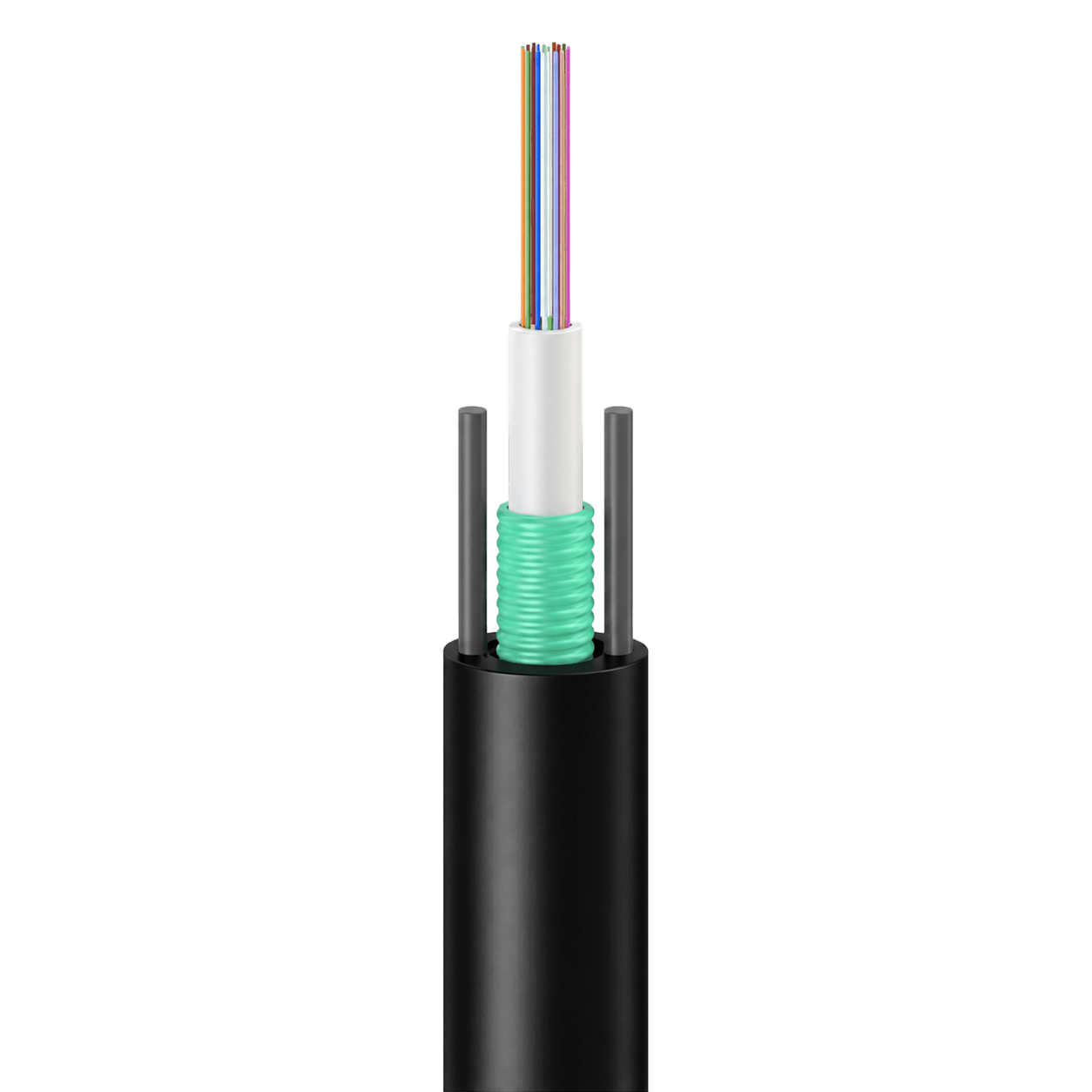

Cable Structure

Cable Structure Includes:

PE outer sheath
PBT loose tube
Optical fibers inside the loose tube
Tube filling compound
Water-blocking tape
APL aluminum plastic laminate or PSP steel tape layer
Two parallel steel wire or FRP strength members
Compact light-armored structure for duct installation
