RG-6

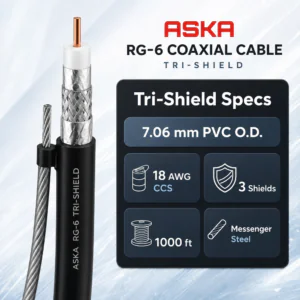

RG-6 Coaxial Cable, Tri-Shield
RG-6 coaxial cable.
1000ftLength
Black or WhiteColor
18AWG (1.02mm) CCSConductor
Description

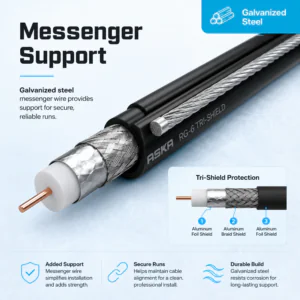

RG-6 coaxial cable. RG-6 Tri-Shield Coax Cable. RG-6 Tri-Shield with Mess. Coax Cable. Mess. 1.30mm Steel.

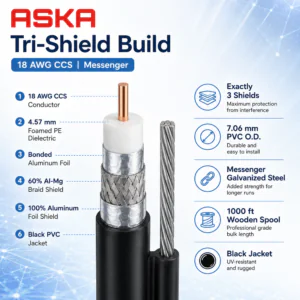

Key specifications
| Conductor | 18AWG (1.02mm) CCS |
|---|---|
| Dielectric | 4.57mm Foamed PE |
| Shield 1 | bonded Al foil shield |
| Shield 2 | braiding shield 77% coverage |
| Shield 3 | Al foil shield |
| O.D. | 7.06mm PVC |
| Length | 1000ft |
| Color | Black or White |

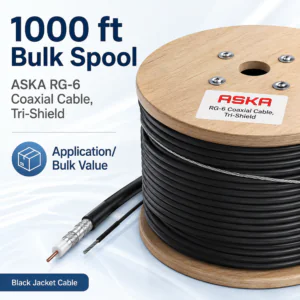

| Packing | wooden spool |
| Shields | 3 |
| Certificate | Not Applicable |
| Siamese | No |
Discuss your requirements.
Share your required configuration, quantity and installation conditions.
Request a quote
