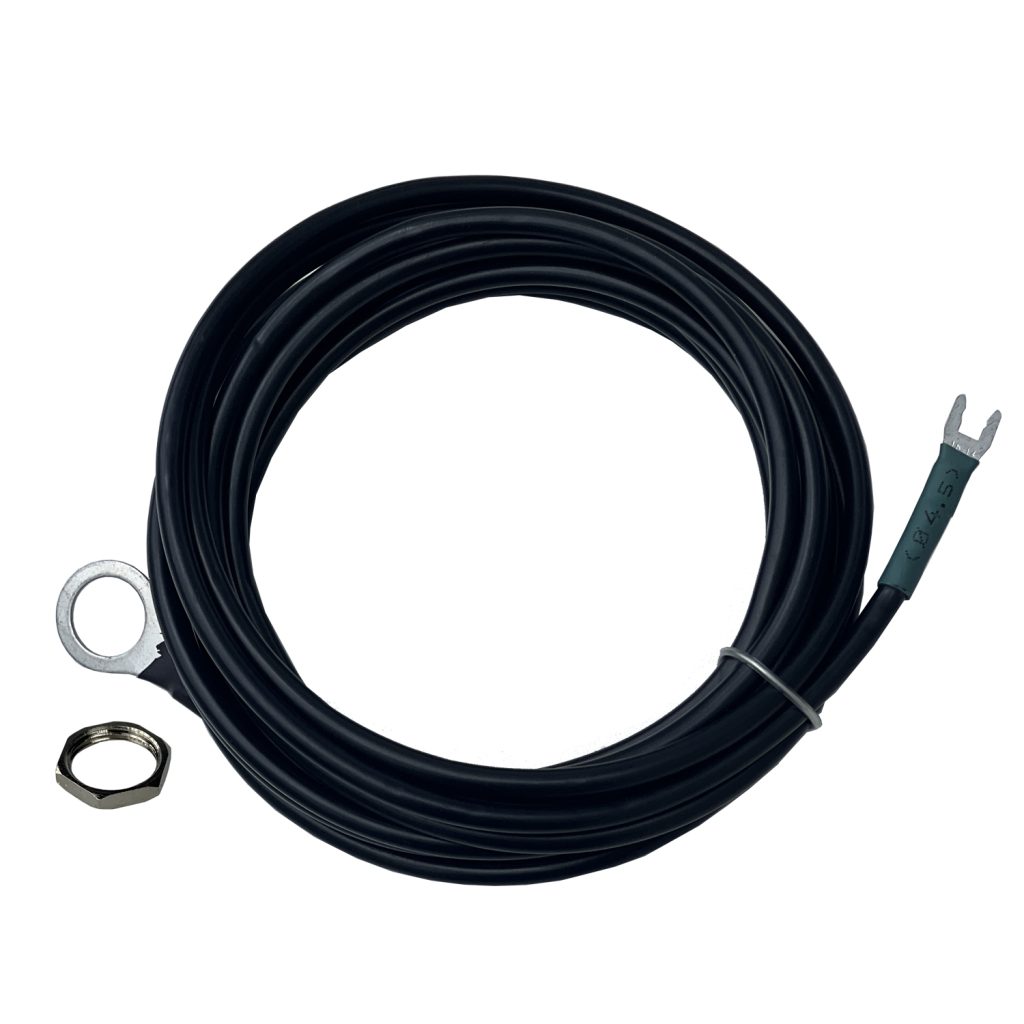

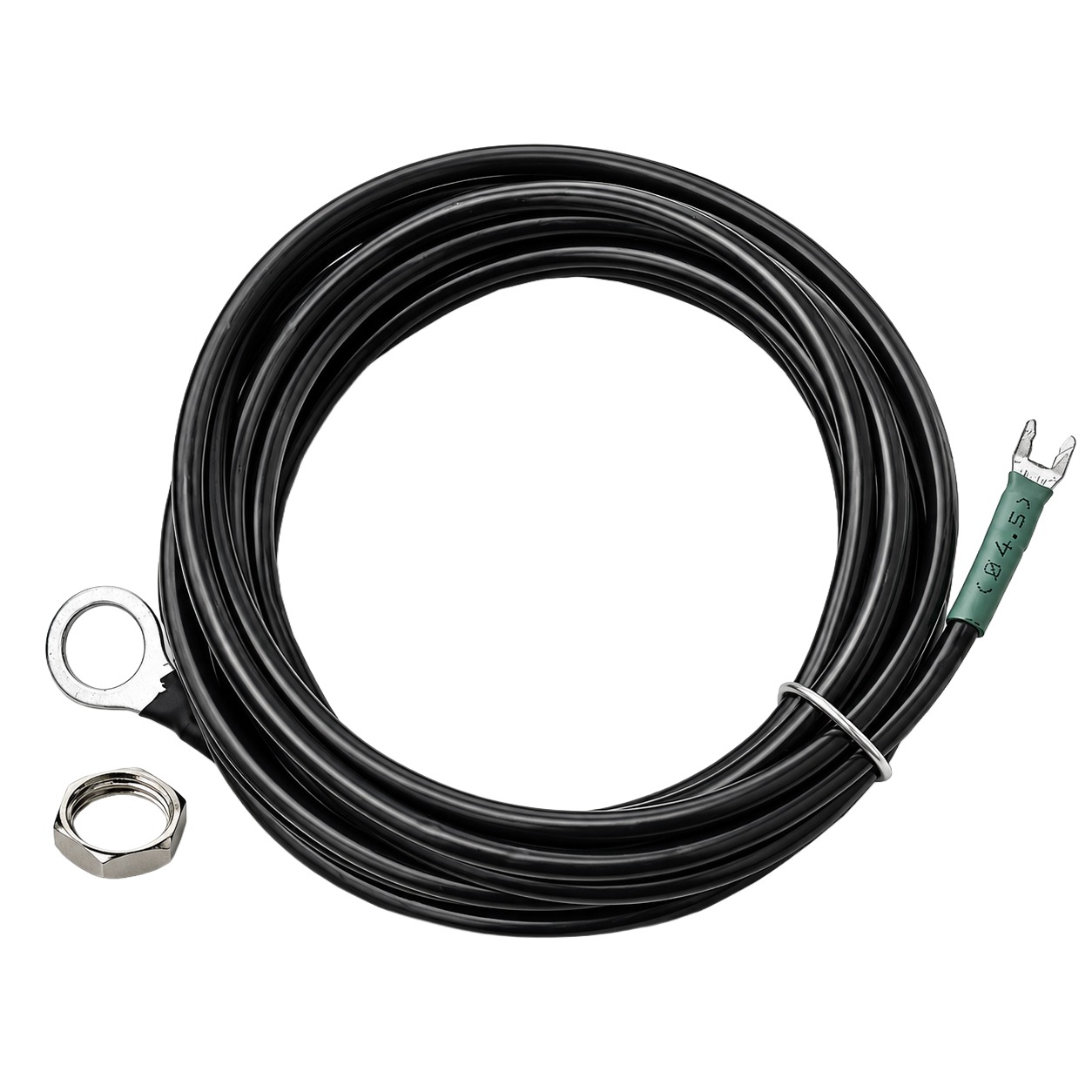

10-ZP6JC Bonding Jumper AT&T

Model No.: 10-ZP6JC

Bonding Jumper for F connector (Cable TV/ Satellite system)

-Cable Length：10ft

-Specification: 14AWG UL VW-1 600V/105

-With one F port Nut

Compatible Devices: Set-top boxes, cable modems, TV antenna

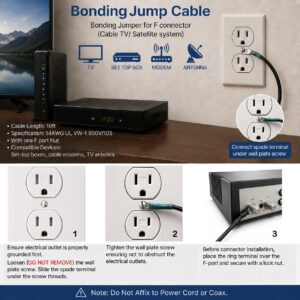

Products Installation:

Important: Ensure electrical outlet is properly grounded first.

1. If the wall plate screw is not metallic DO NOT CONTINUE. The wall plate screw should be loosened (DO NOT REMOVE) sufficiently to allow the ZJ6JC spade terminal to slid over the screw threads.

2.With the ZJ6JC spade terminal in place, tighten the wall plate screw ensuring not to obstruct the electrical outlets.

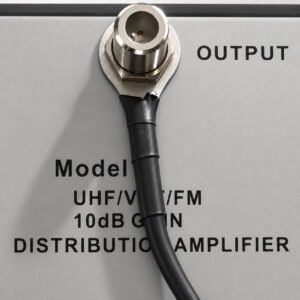

3.Before connector installation, the ZP6JC ring terminal should be placed over the set-top box F-port and secured with a lock nut
