Window Jumper

Model No.: 10-SFC12-O (orange insert)

Model No.: 10-SFC12-B (blue insert)

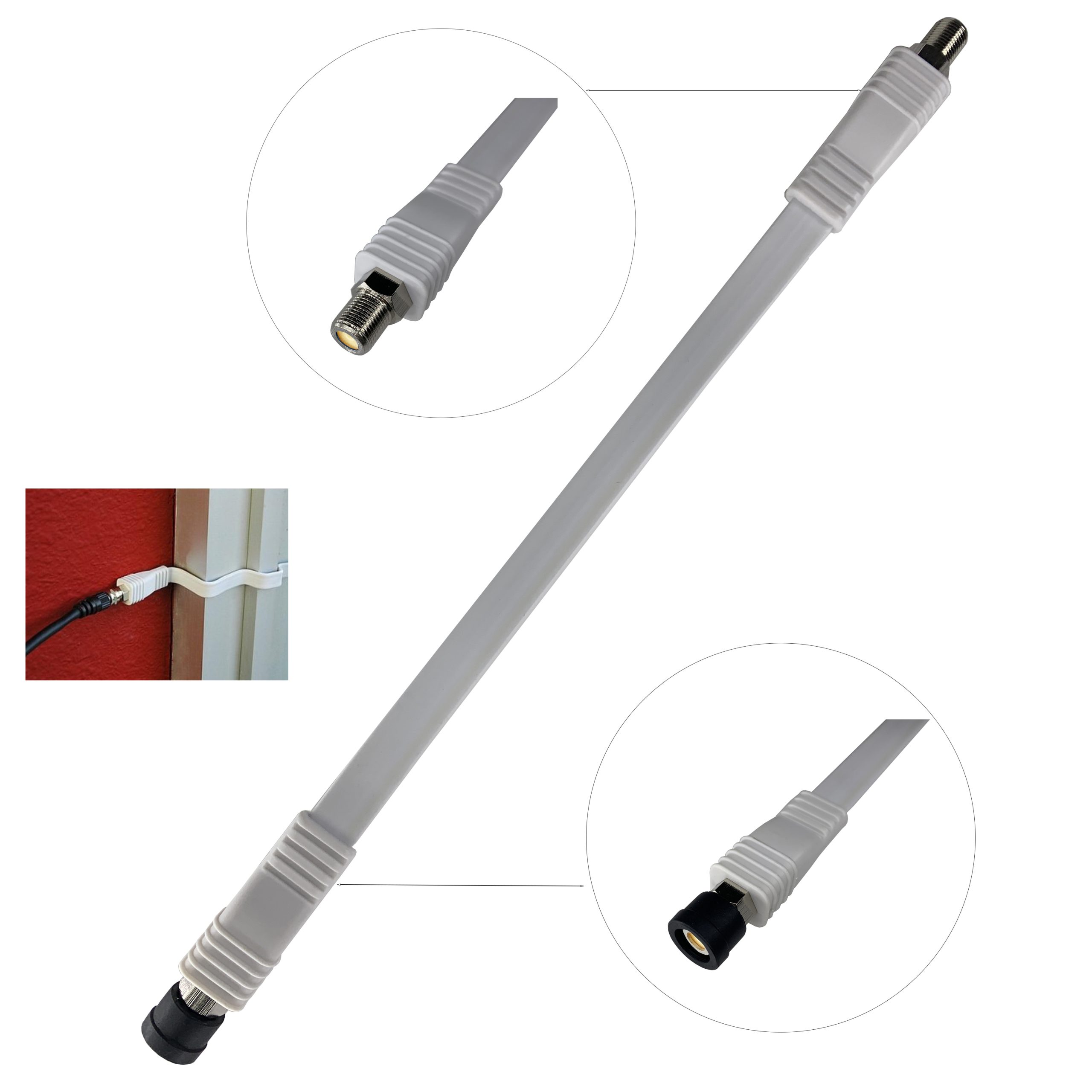

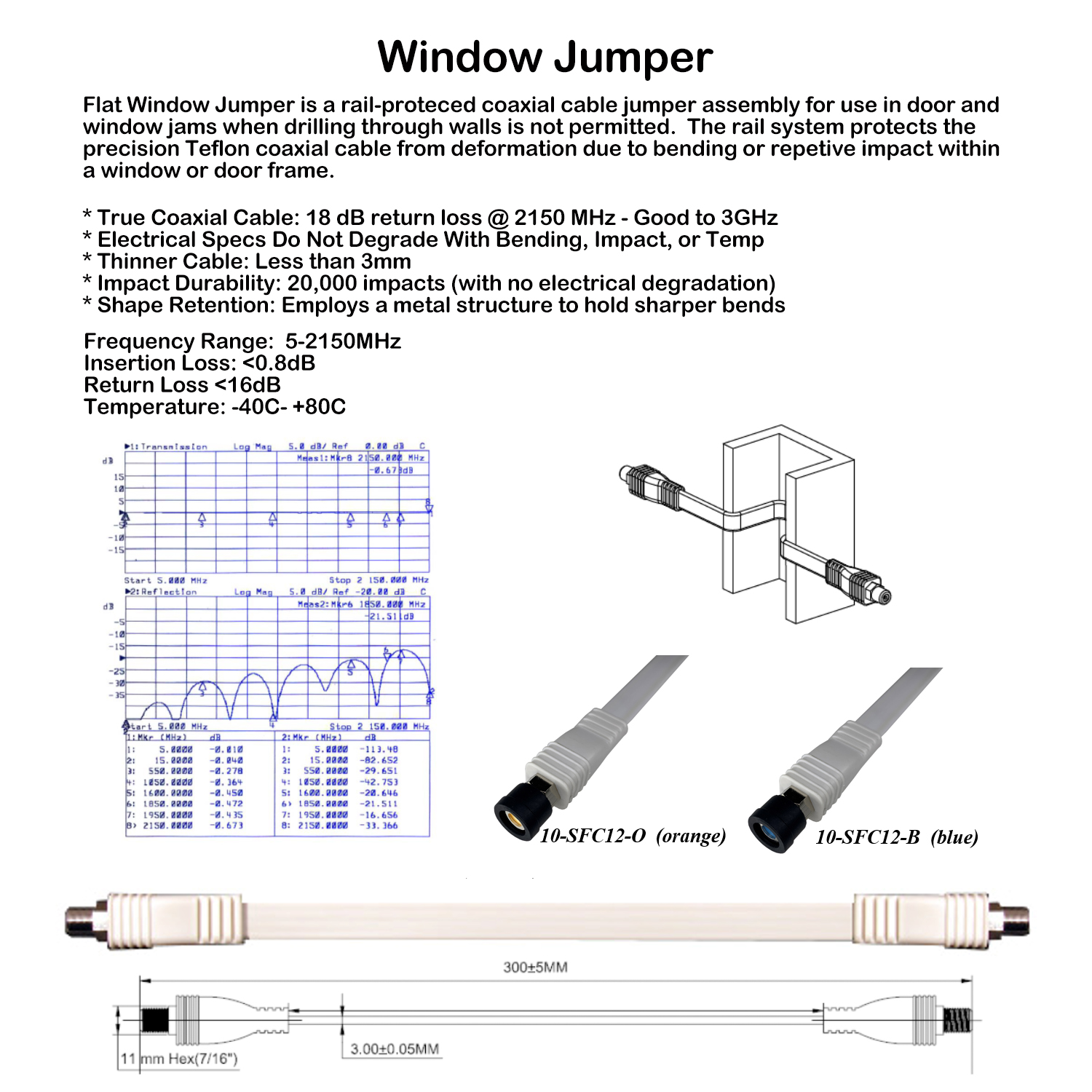

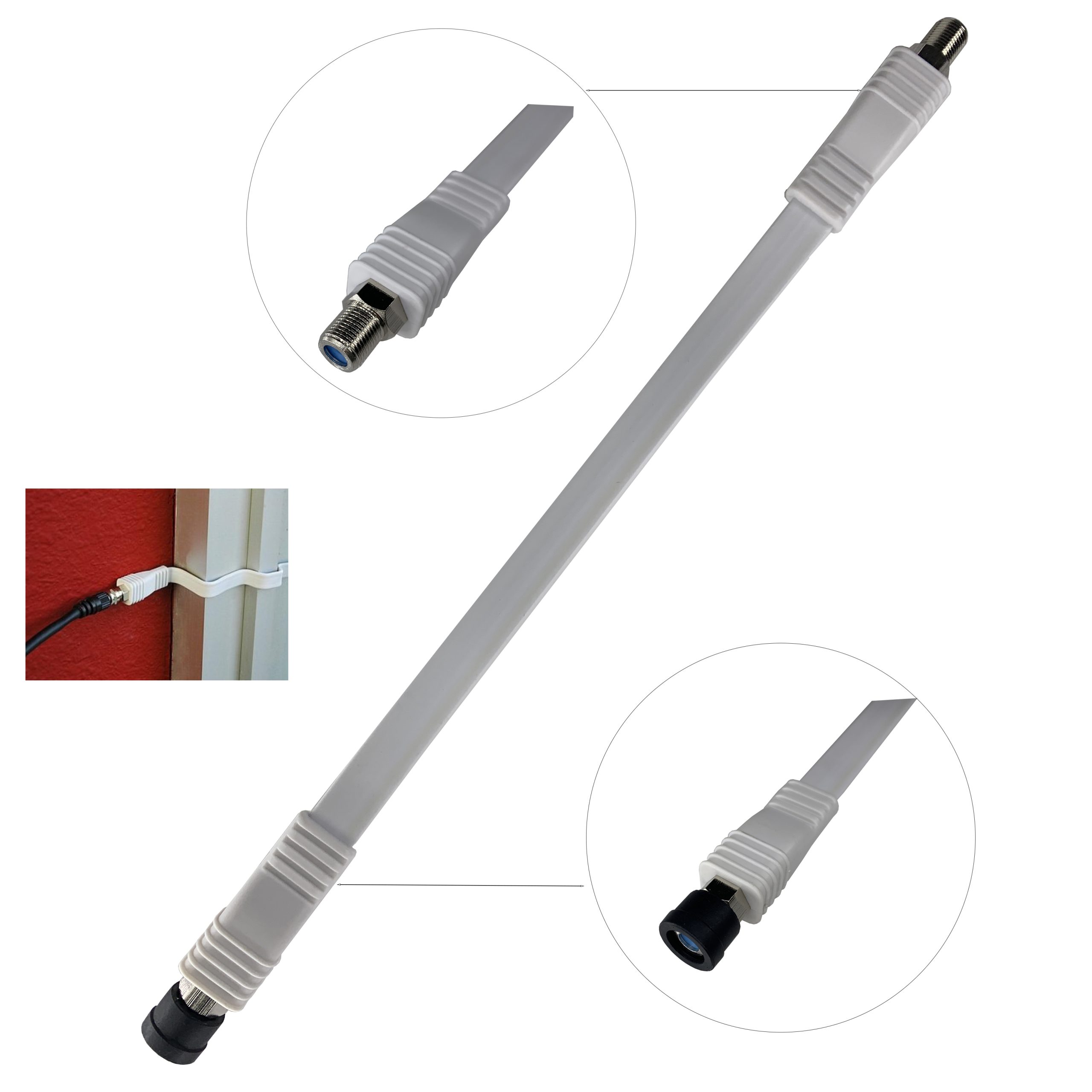

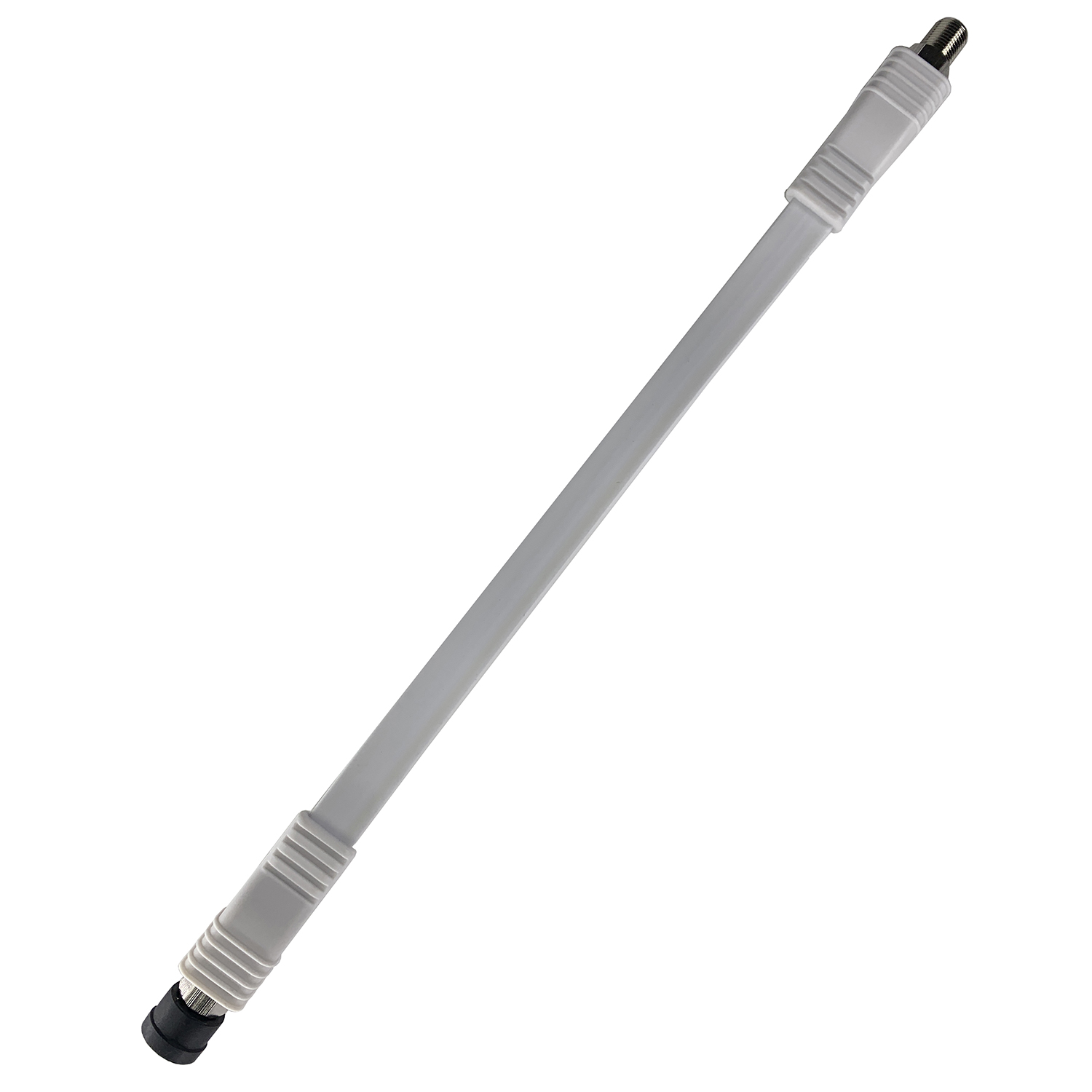

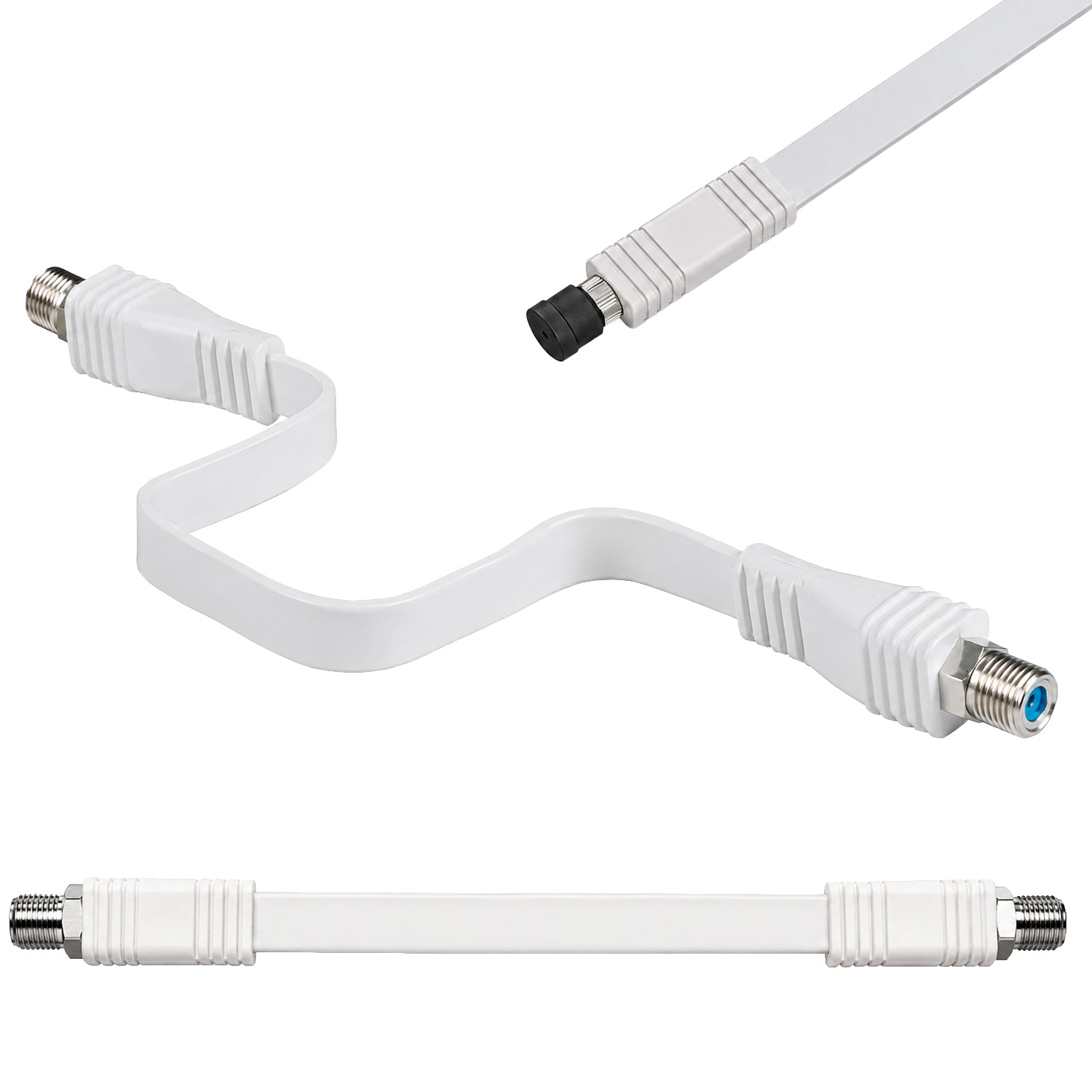

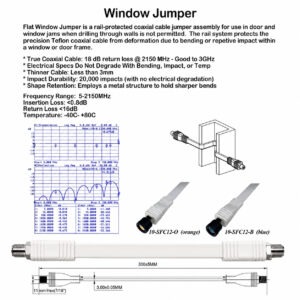

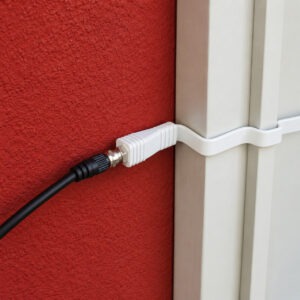

Flat Window Jumper is a rail-protected coaxial cable jumper assembly for use in door and window jams when drilling through walls is not permitted. The rail system protects the precision teflon coaxial cable from deformation due to bending or repetitive impact within a window or door frame.

Specification:

Frequency Range: 5-2150MHz
Insertion Loss: <0.8dB
Return Loss <16dB
Temperature: -40C- +80C

Feature:

True Coaxial Cable: 18 dB return loss @ 2150 MHz – Good to 3GHz
Electrical Specs Do Not Degrade With Bending, Impact, or Temp
Thinner Cable: Less than 3mm
Impact Durability: 20,000 impacts (with no electrical degradation)
Shape Retention: Employs a metal structure to hold sharper bends
